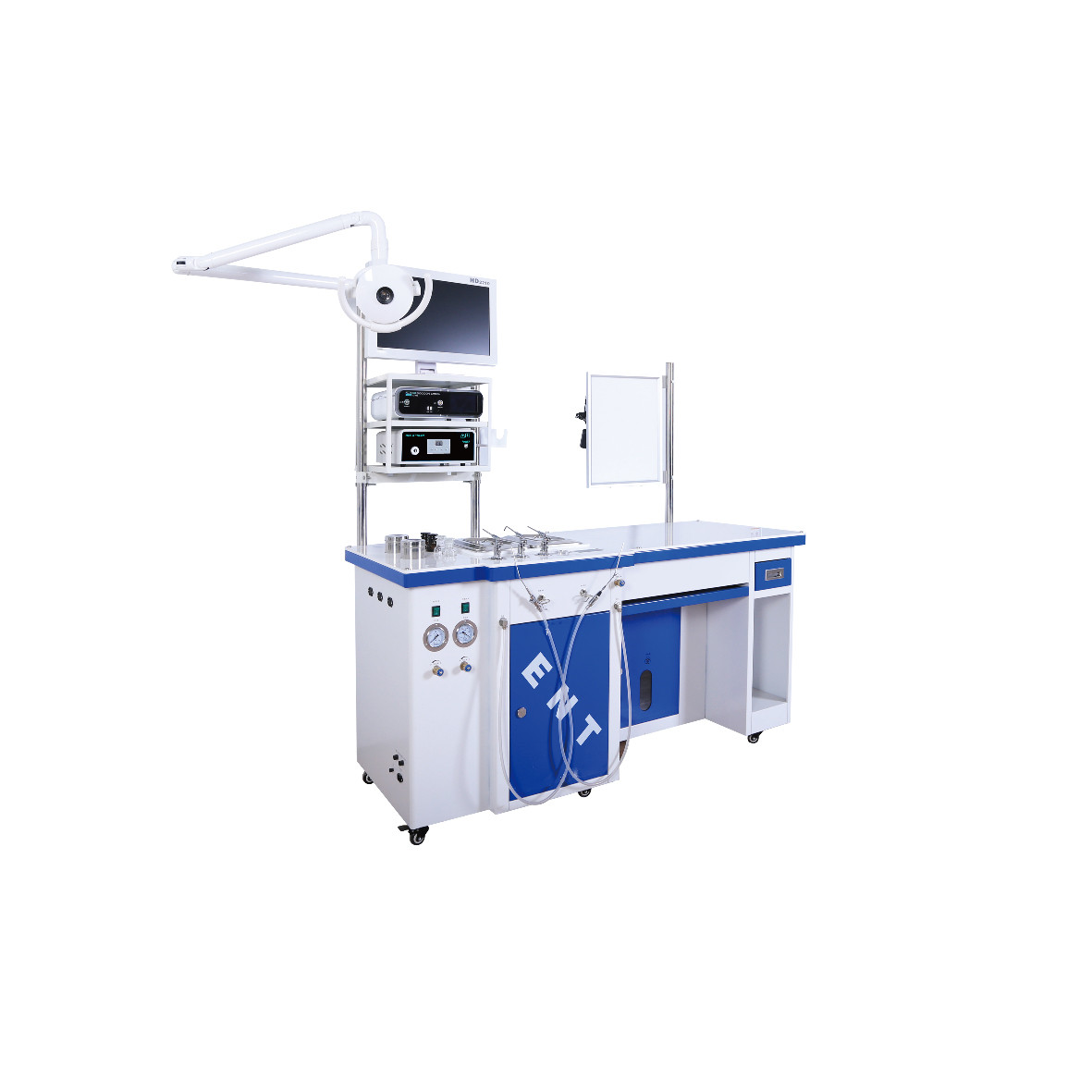

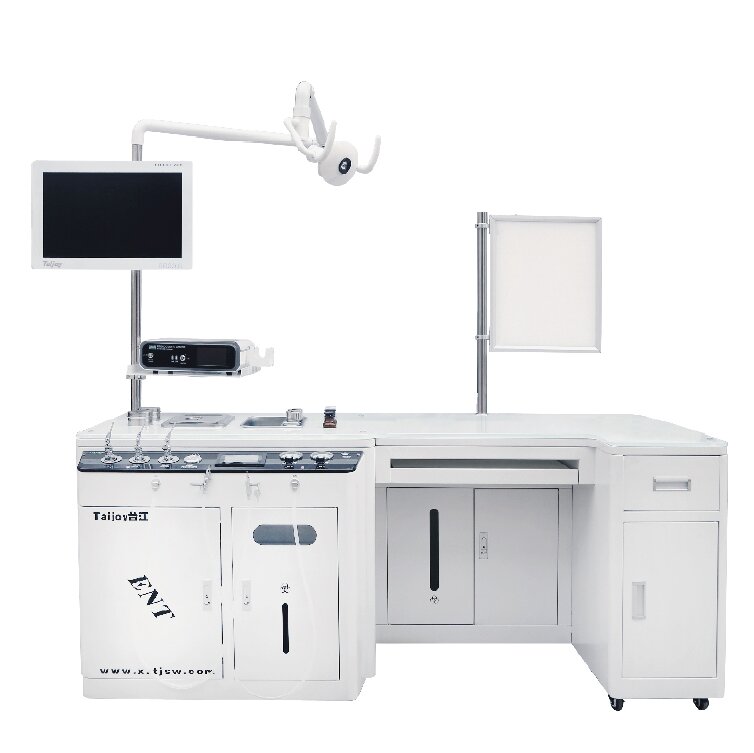

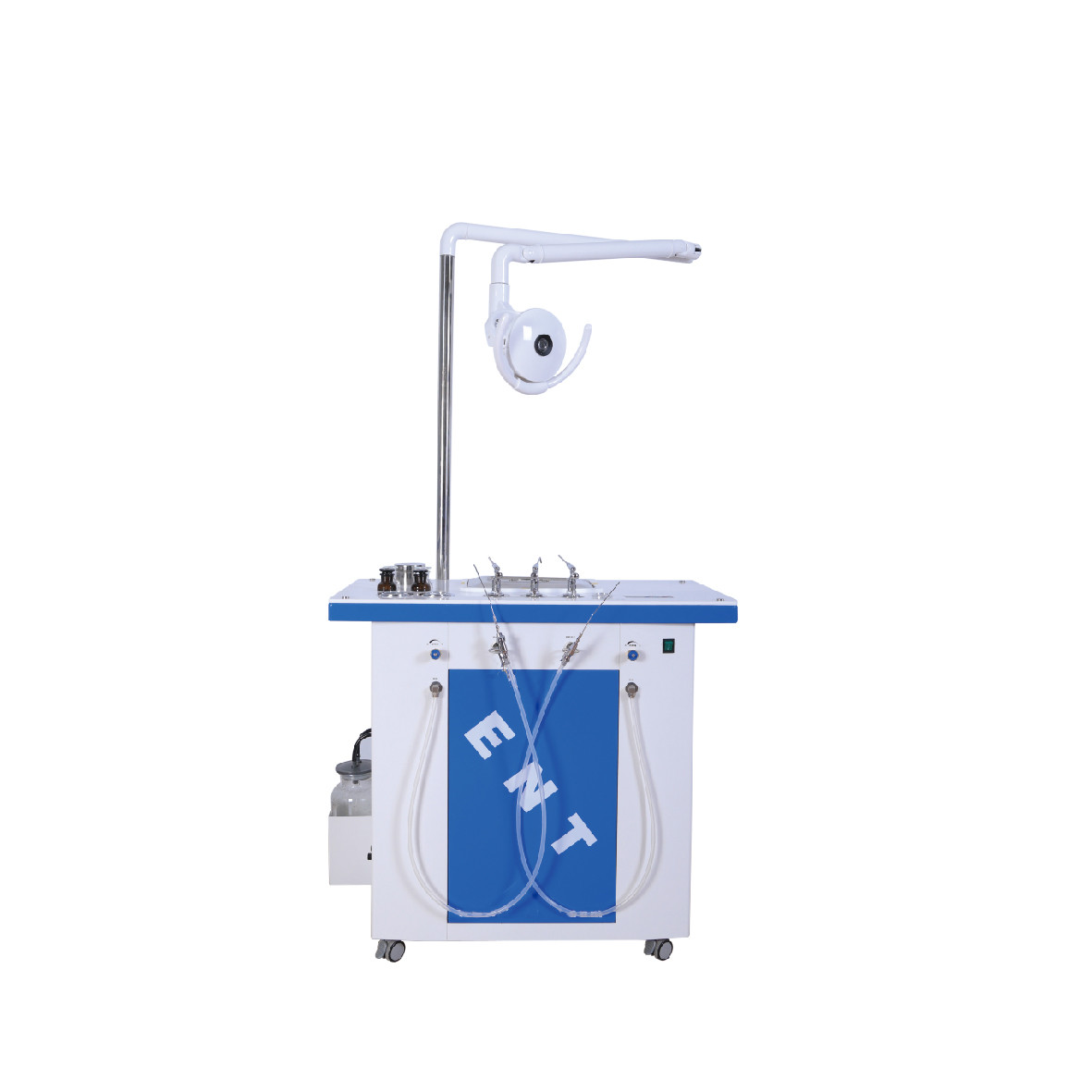

6000 series of ENT examination and treatment units adopt advanced manufacturing process. The work tabletops are made from DUPONT coated countertops that are easy to clean.
No leakage of stain, new type of quick plug-in no-jam spray gun
Use oil-free compressor, vacuum pump, small size, low noise
Instruments have sterilization function, detailed classify of product function, suitable for all levels of hospitals
Spray gun and blow gun positive pressure: 0.1Mpa~0.15Mpa (adjustable)
Suction gun negative pressure: 0Mpa~-0.07Mpa (adjustable)
Cold light source illuminance not less than1600000Lux
CCD horizontal resolution not less than420TVL
Optional: Film viewer
Scope of application: Using with ENT endoscope for ENT diagnosis, treatment and other
No
Name
quantity
functional parameter
1
master operational console
1
size:1600*650*750mm Face mask environmental
protection crystal marble table top,
table top after dupont coating treatment,
corrosion resistance, friction resistance,
no penetration, strength improvement,
impact resistance
2
Positive pressure pump
1
Imported ultra-quiet technology,
independent positive pressure pump,
positive pressure 0.1mpa ~ 0.15mpa adjustable,
fully in line with national standards,
high safety performance
3
Negative pressure pump
1
Adopt imported super mute oil free negative pressure pump
and equipped with mute device, adjustable suction,
and equipped with anti-reflux device,
safe and reliable
4
spray gun
6
Good biocompatibility, acid and corrosion resistance,
high atomization degree, continuous spray 60S
5
suction gun
2
Suction gun negative pressure in 0~0.065MPa can be adjusted,
fully comply with national standards,
high safety performance
6
blow gun
2
The positive pressure is adjustable from 0.1mpa to 0.15mpa,
which fully conforms to the national standard and
has high safety performance
7
Preheat the mist remover
2
It is equipped with 3 levels of heating time.
After opening 10S, the outlet temperature shall not
be lower than 30 degrees Celsius,
and the maximum temperature shall not be higher than 45
degrees Celsius. Besides, it is equipped with water
leakage device, which is safe and reliable
8
Ultraviolet Disinfection Lamp
2
Average irradiance: 22 muw /cm2
10
suction bottle
1
2500ml, with return flow device
11
Spotlights and brackets
2
The spotlights are 12V,60W spotlight LED cold light
spotlights, the mechanical arm can be 180 rotation,
up and down movement range of 300mm, used to adjust
the position of the lighting, remote control of
the lighting brightness, the column can be used for
the installation of some optional function brackets
12
The tray
2
304 stainless steel, one with cover, one with alcohol
cotton ball cylinder
14
The cotton ball cylinder
2
304 stainless steel
15
StorageDrawers
1
Sheet metal process manufacturing, surface painting
16
Storage computer cabinet
1
Sheet metal process manufacturing, surface painting
